Ty Pren

Brecon Beacons, Powys, Wales
2007-2009

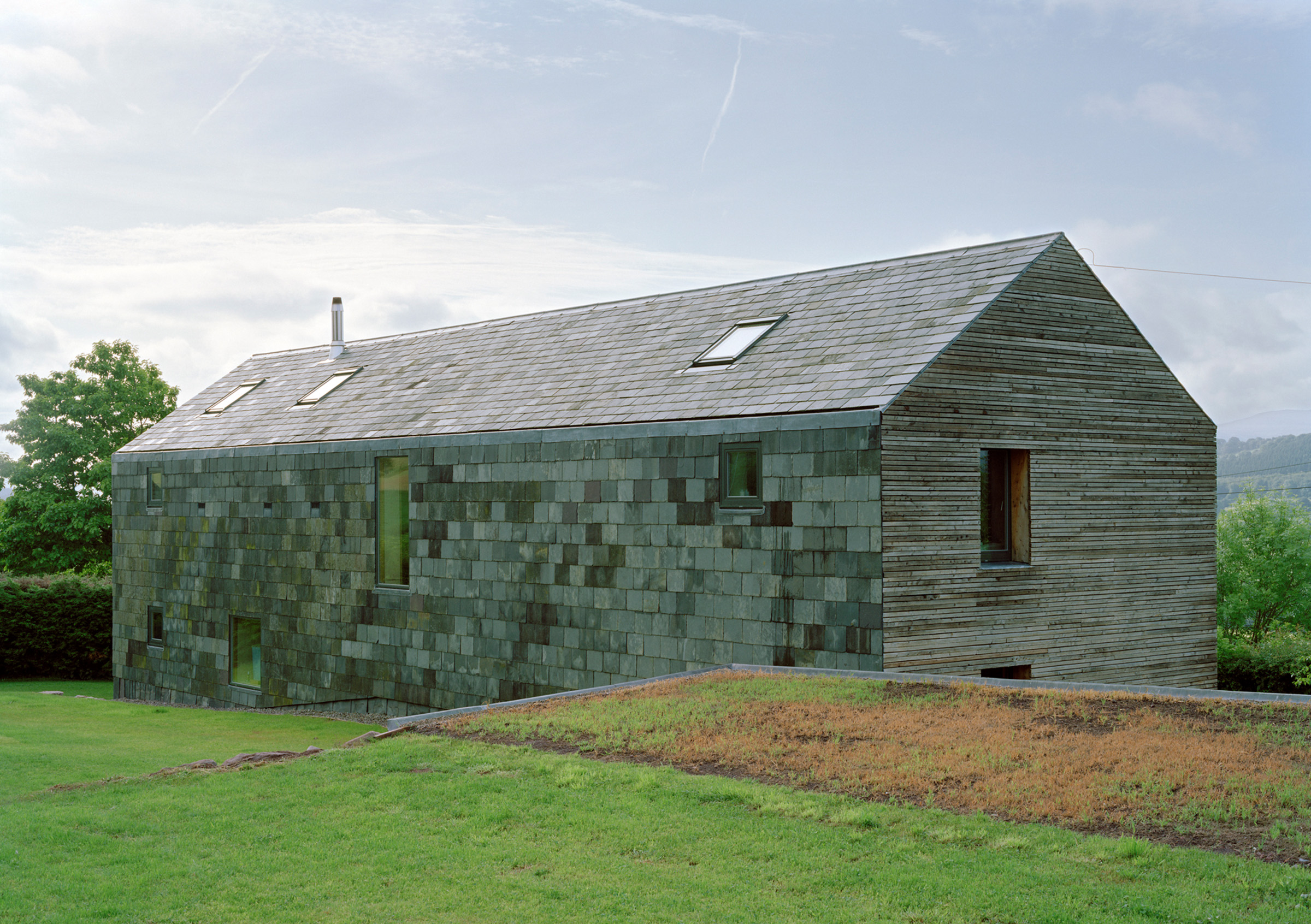

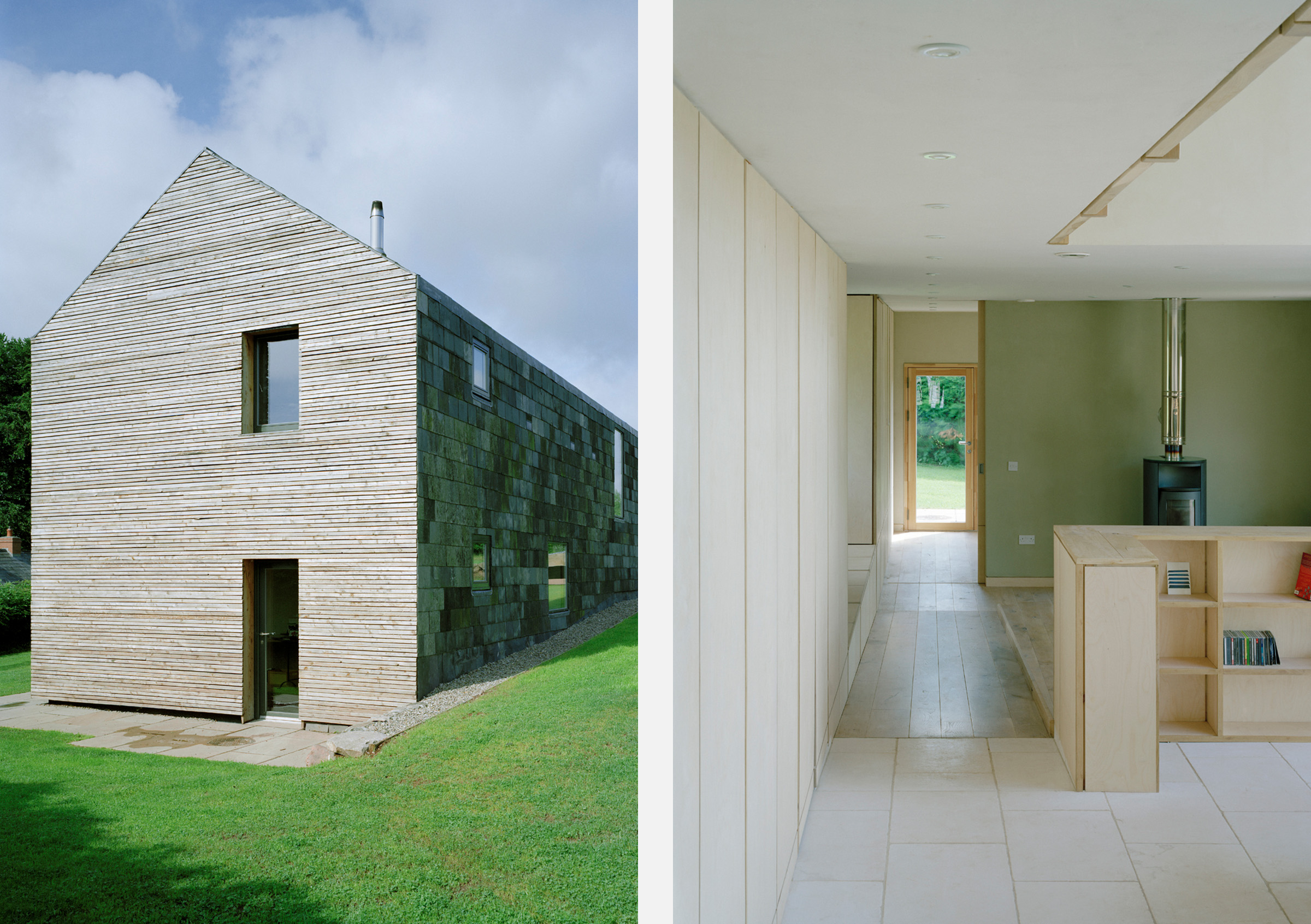

Ty Pren is a passive long house, inspired by the rich local vernacular of the Brecon Beacons. This typology is emphasised as a crisp extrusion, without eaves. Passive solar principles have driven the elevation treatment, opening to the southerly views over Pen Y Fan with a more robust treatment protecting against the harsh weather from the north.

Local Vernacular

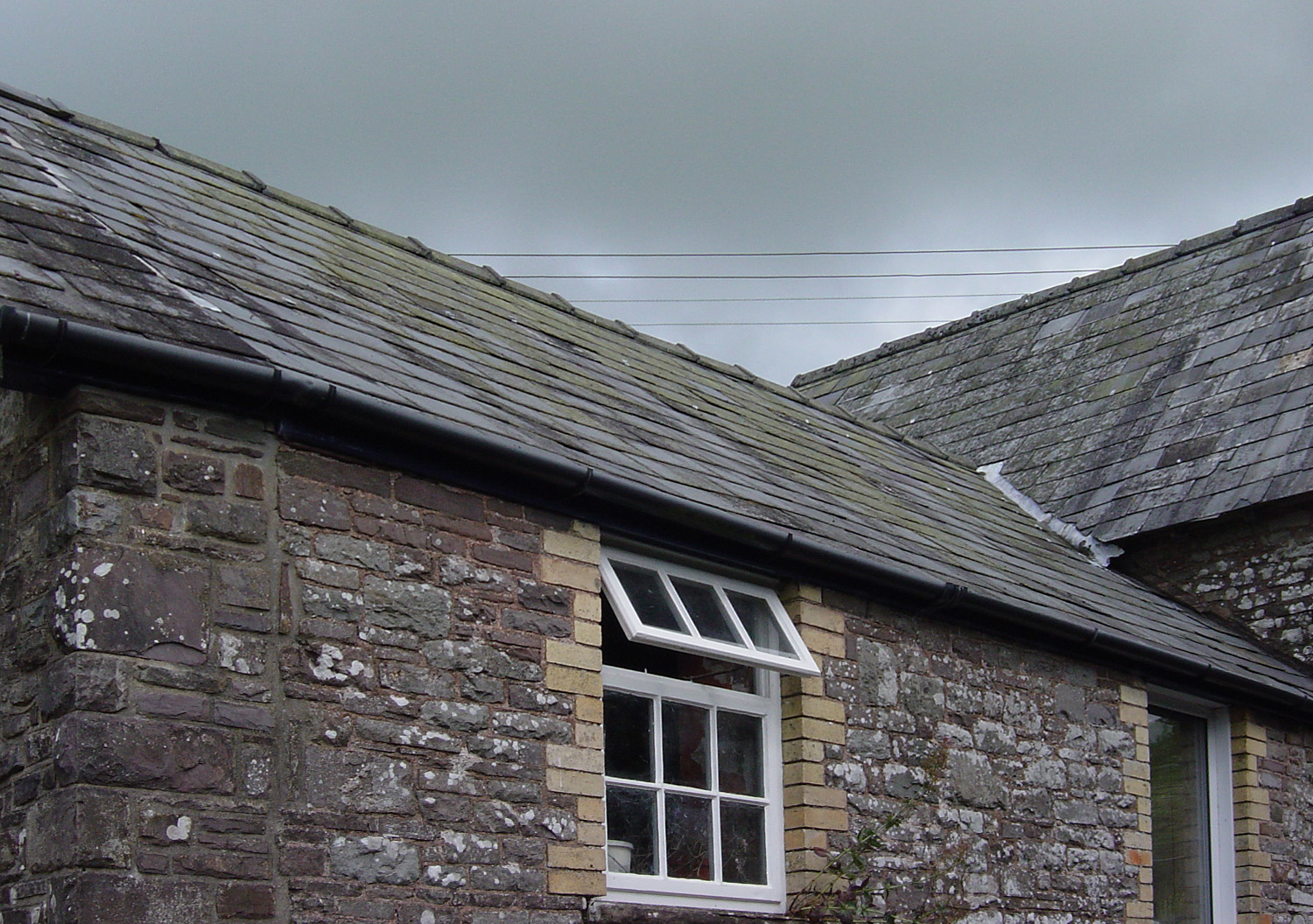

Powys, in the Brecon Beacons, is shaped by a vernacular of robust stone building and the enduring Welsh longhouse tradition. Local farmsteads, with their thick sandstone walls and sweeping slate roofs, are grounded in the land, their linear forms historically accommodating both people and animals under one roof

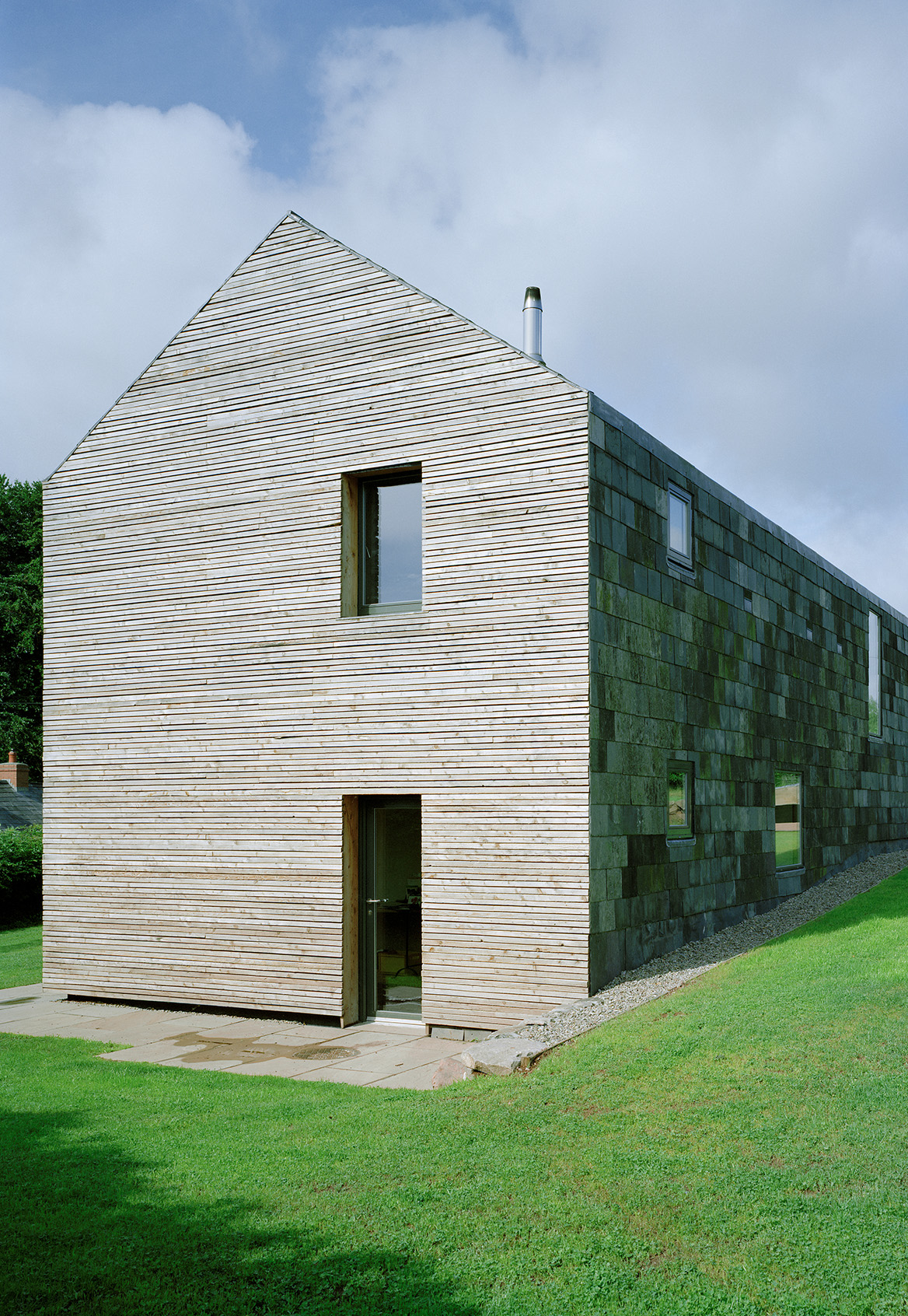

Feilden Fowles’ Ty Pren takes direct reference from this heritage: its elongated form recalls the longhouse typology, while slate is brought down onto the external walls, echoing the weathered grey stone of neighbouring buildings. In doing so, the house embeds itself within the landscape and architectural language of rural Powys.

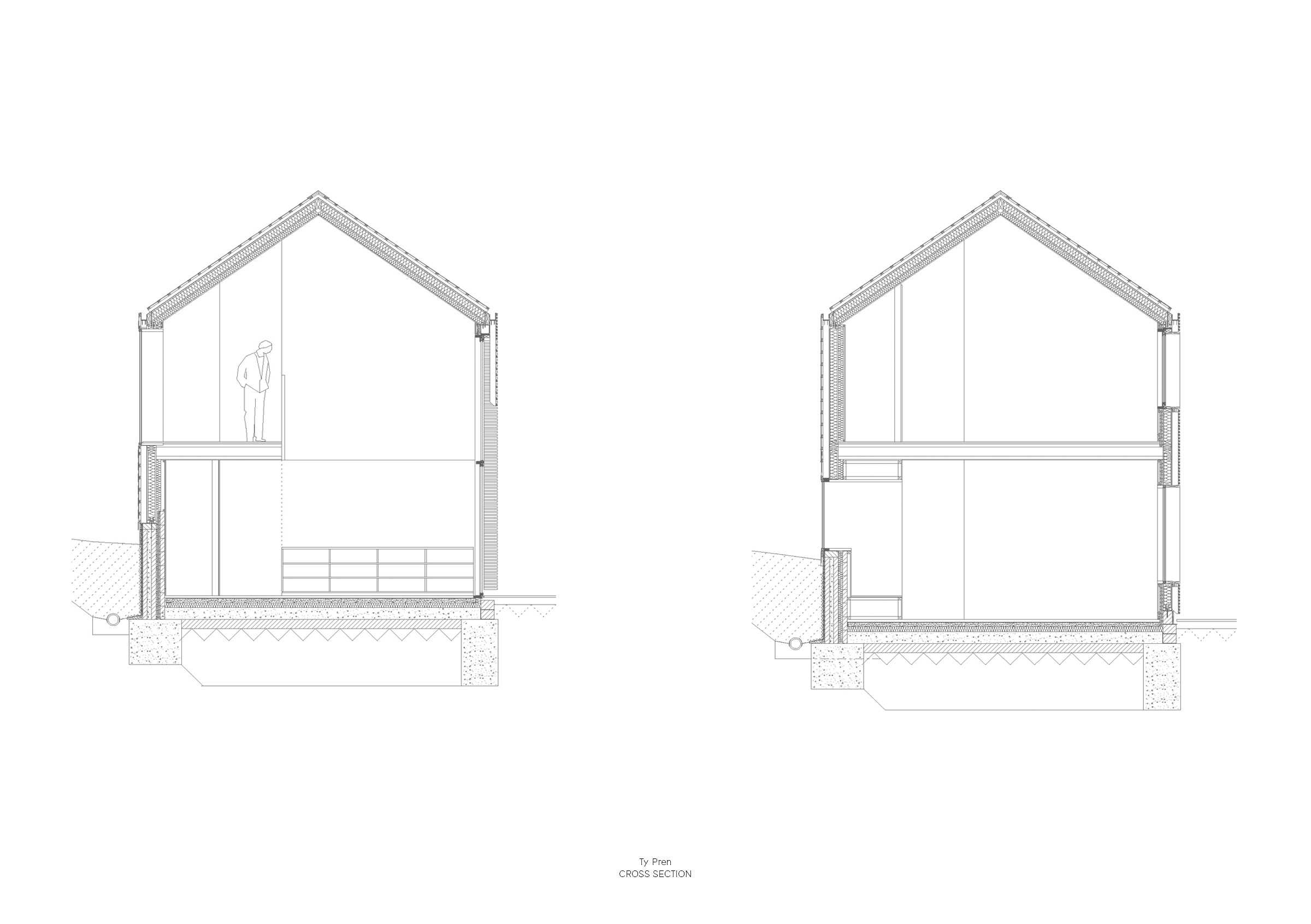

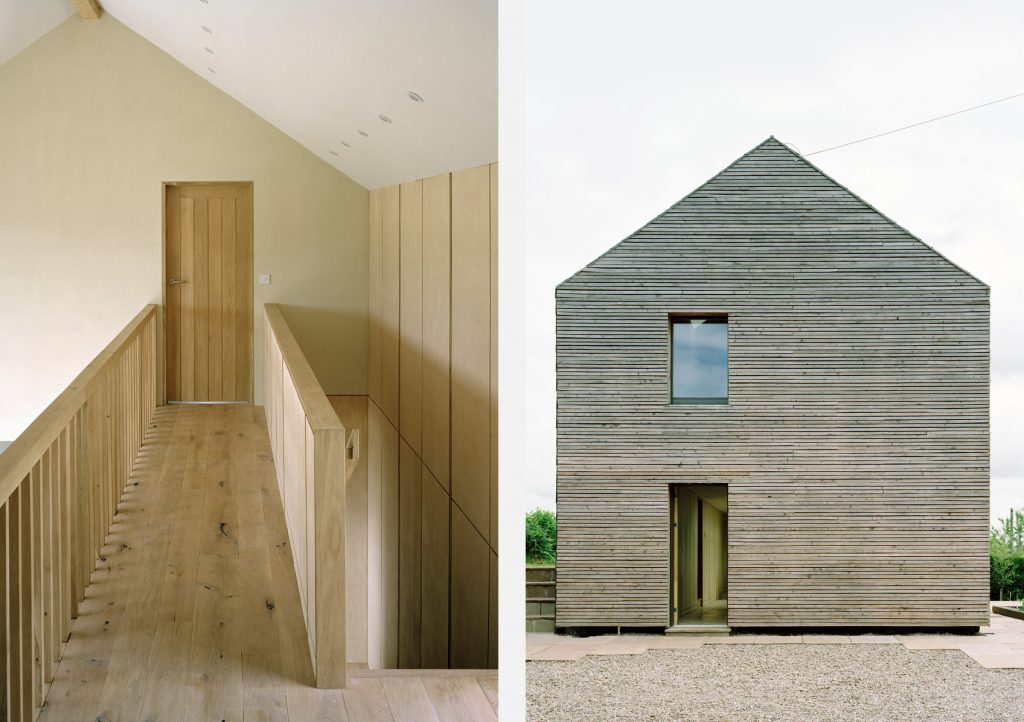

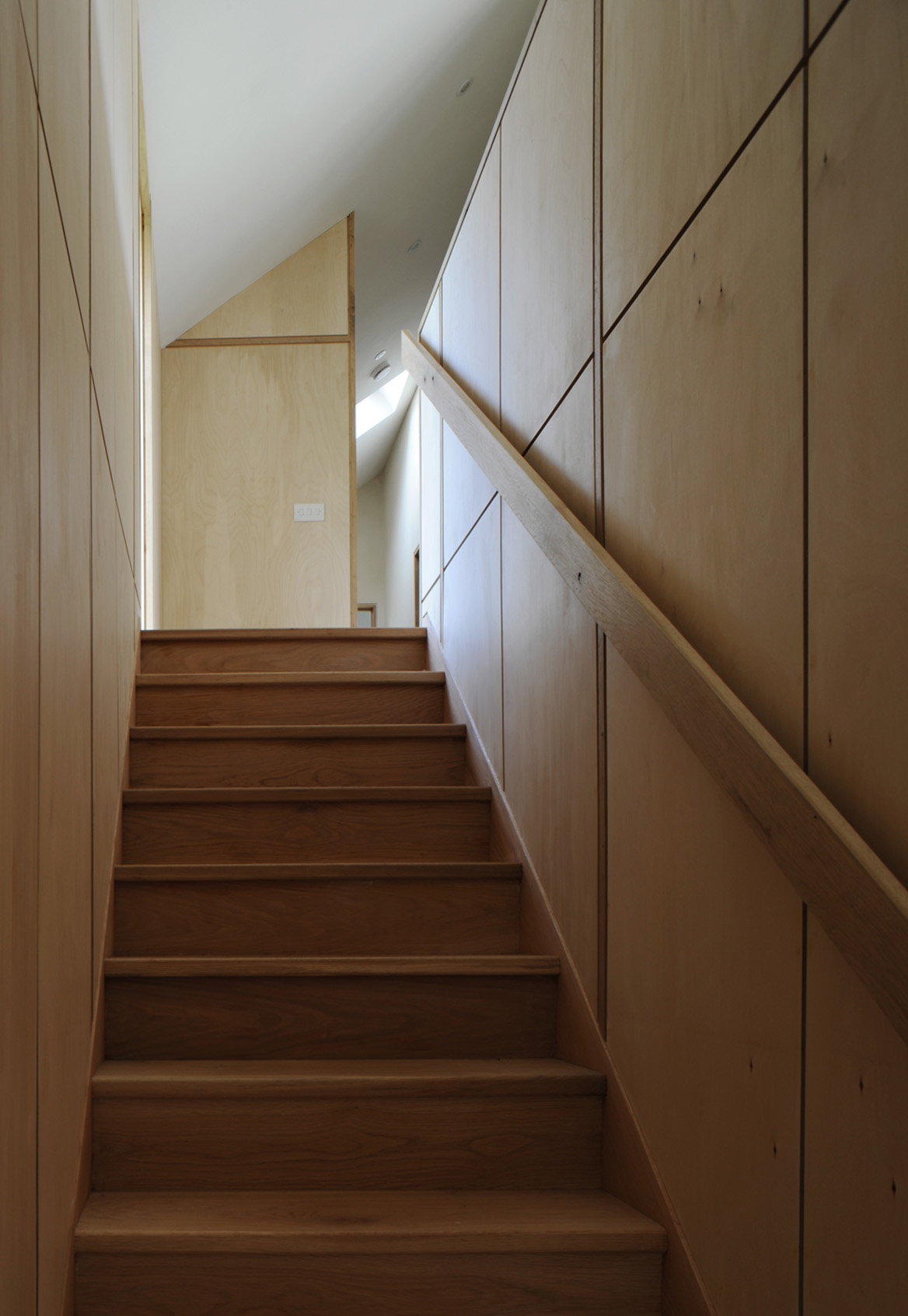

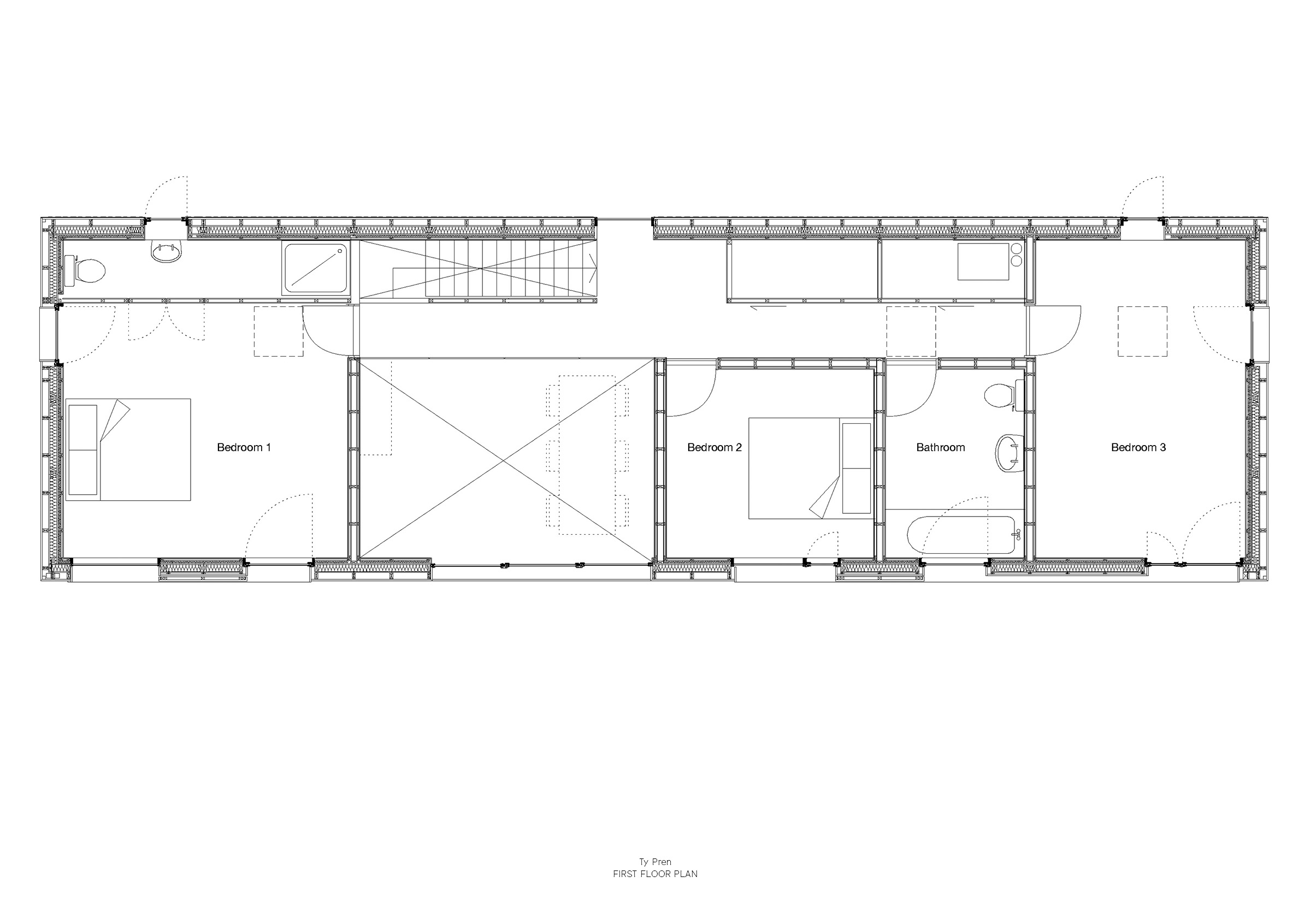

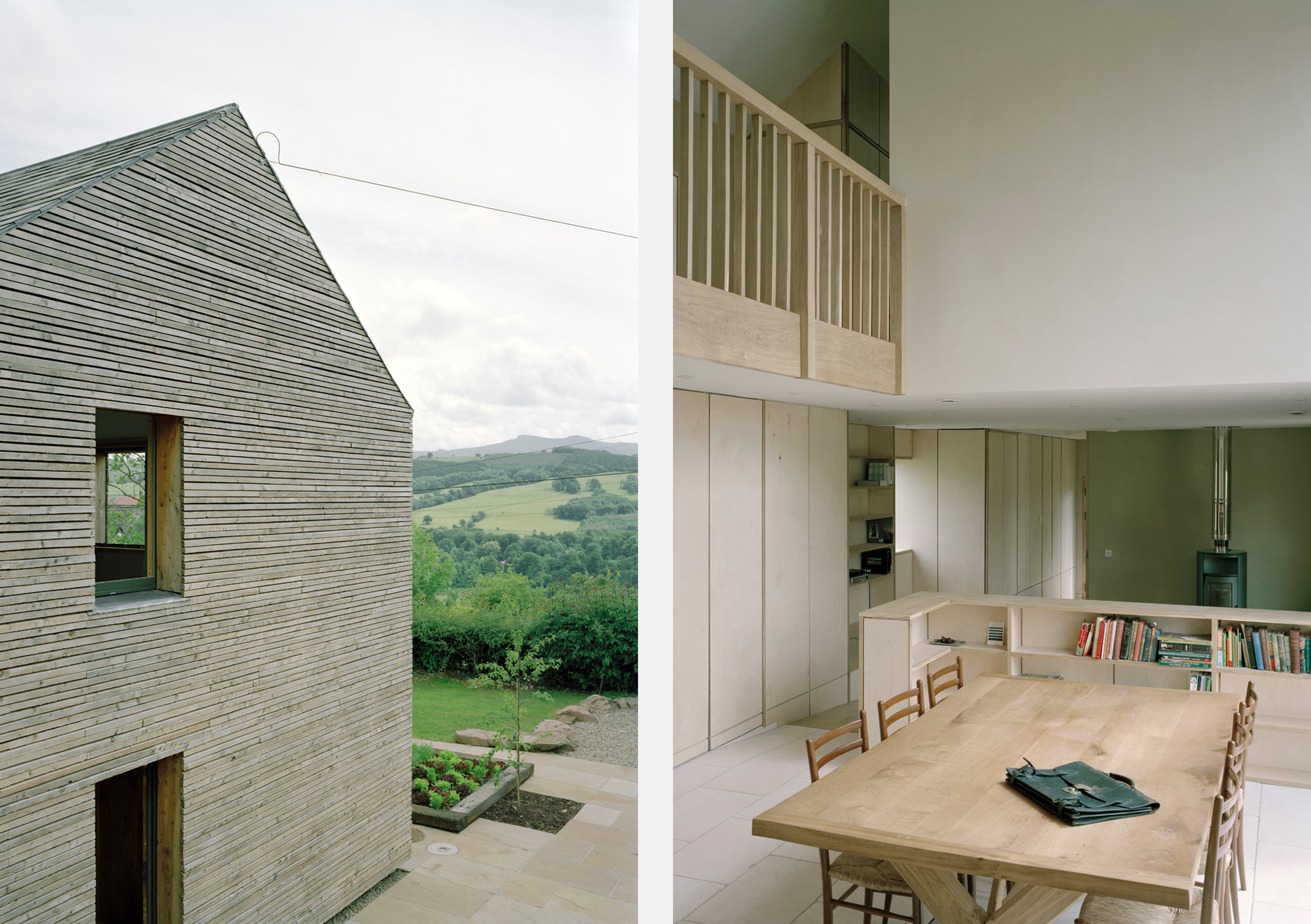

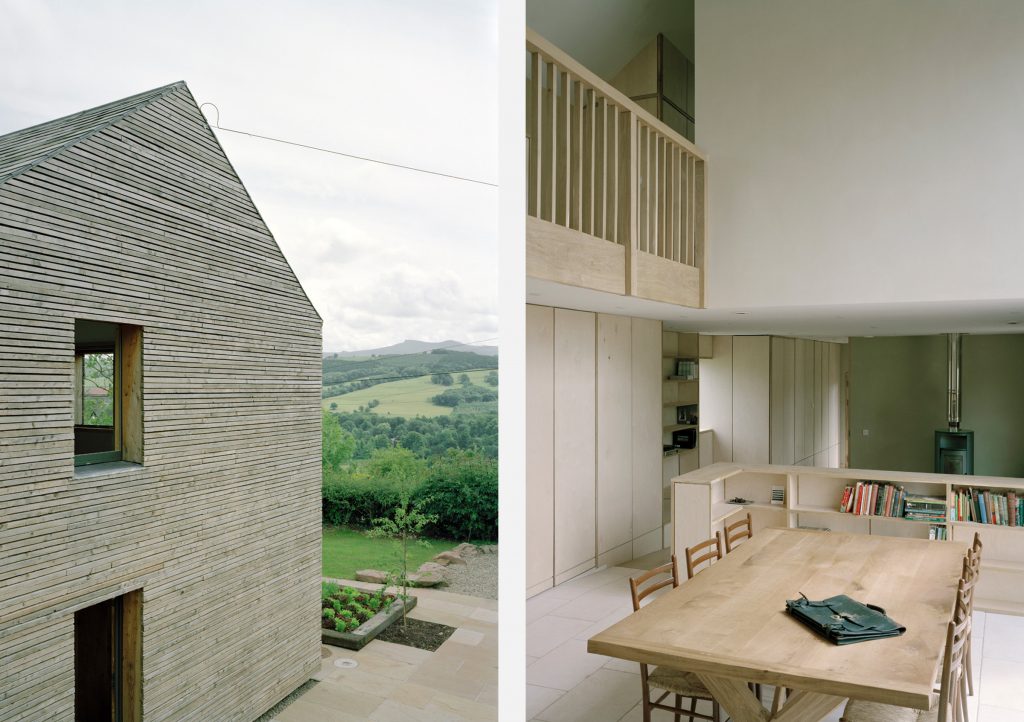

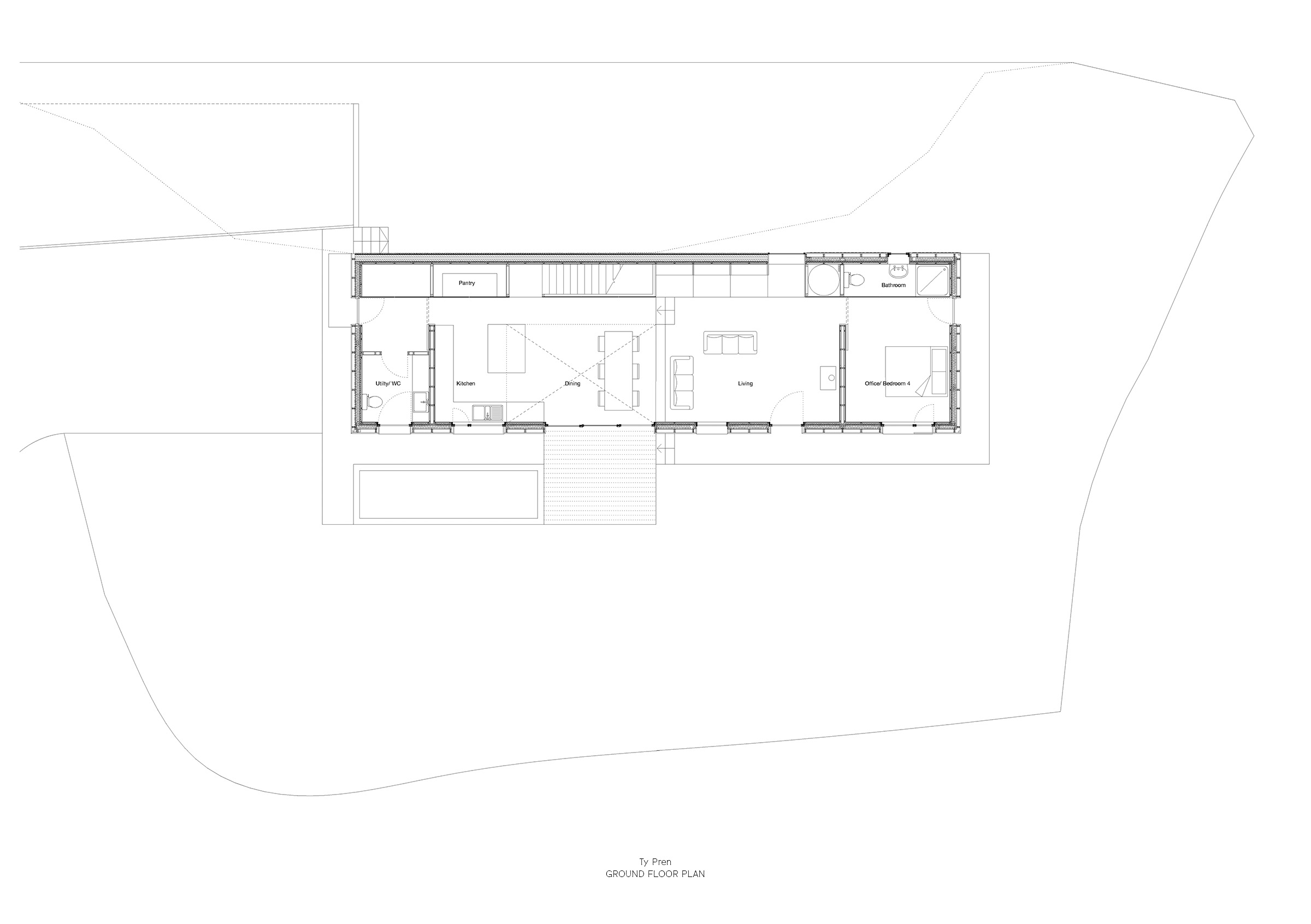

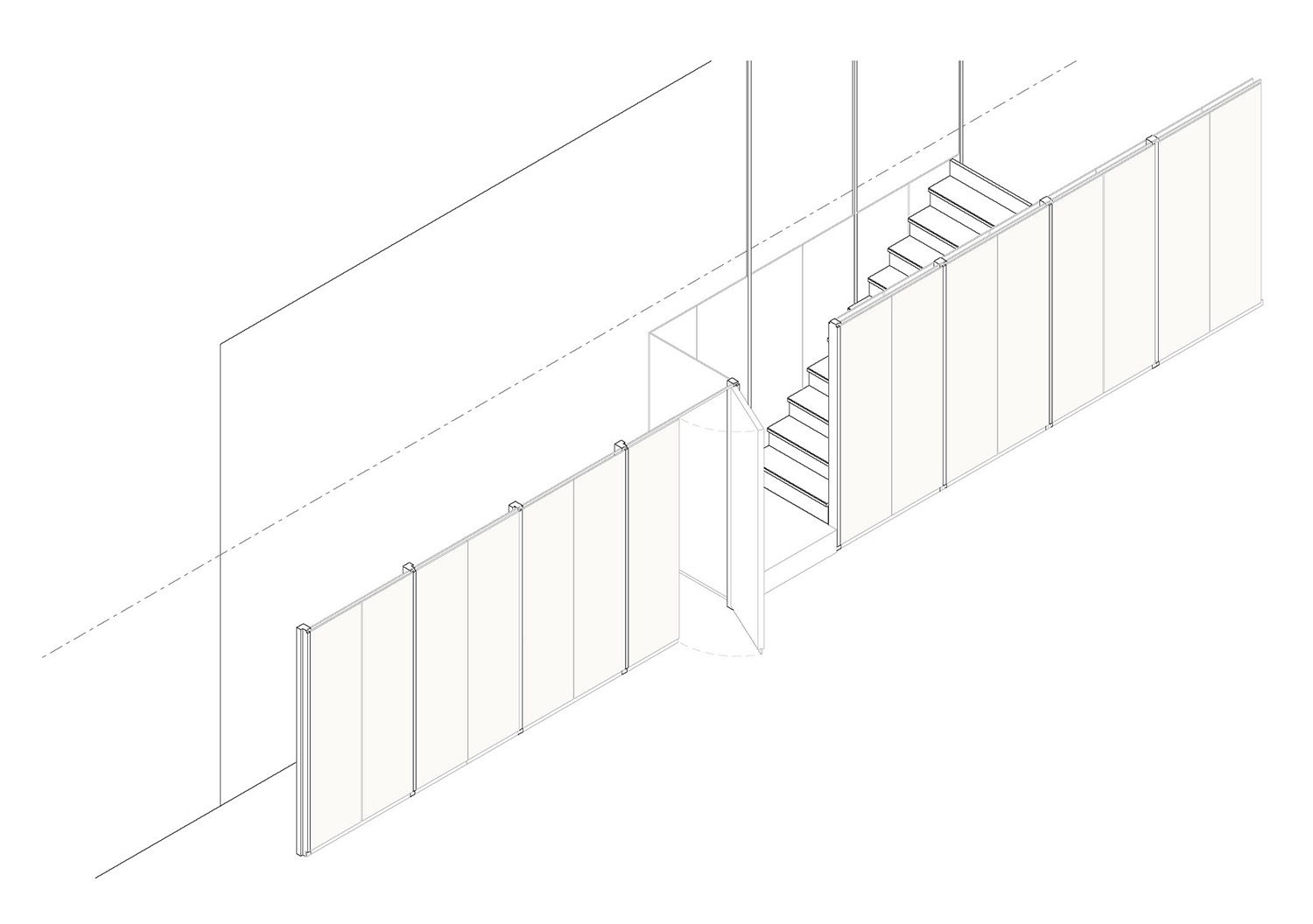

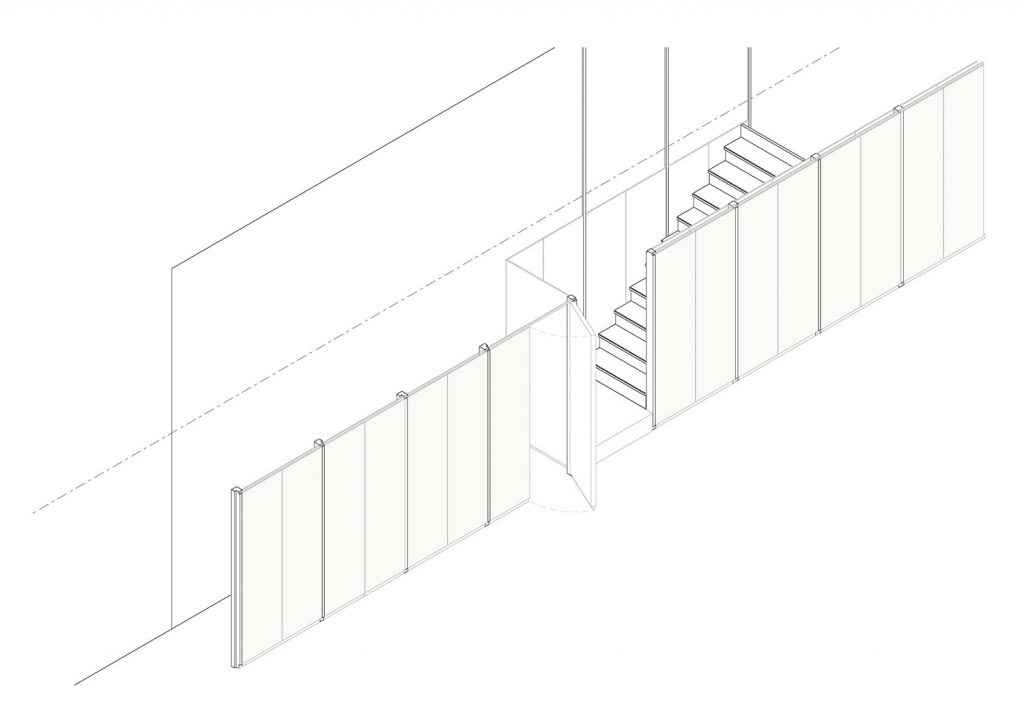

Internally, the plan is strictly modernist along two key axes and with all the services housed in a deep north wall, including the bathrooms and stairs. A double height central void provides a natural stack for hot air from the stove and solar gains to distribute to the upper floors. The house is exceedingly green with an emission rate of a mere 6kg/CO2/year.

Larch Cladding

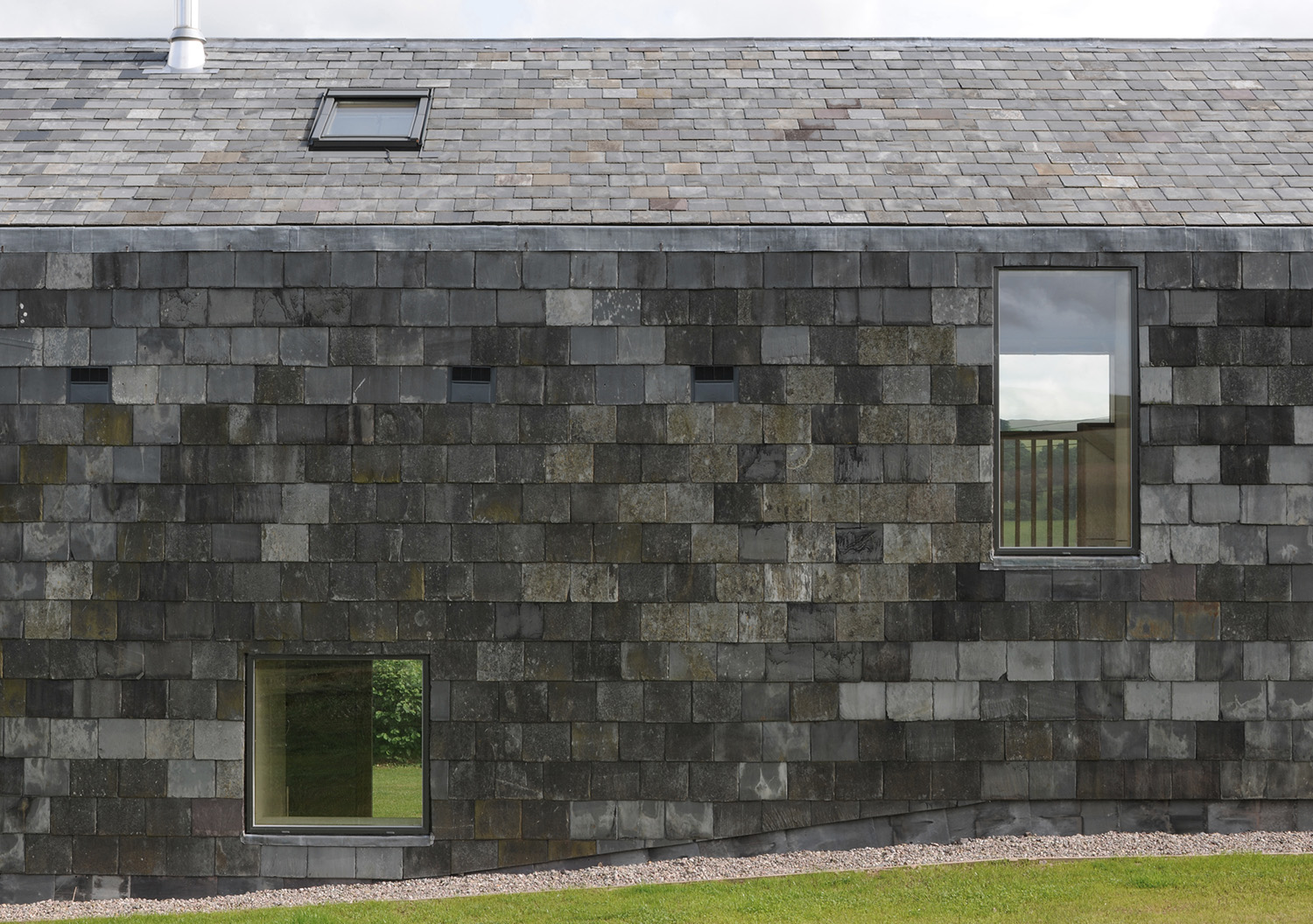

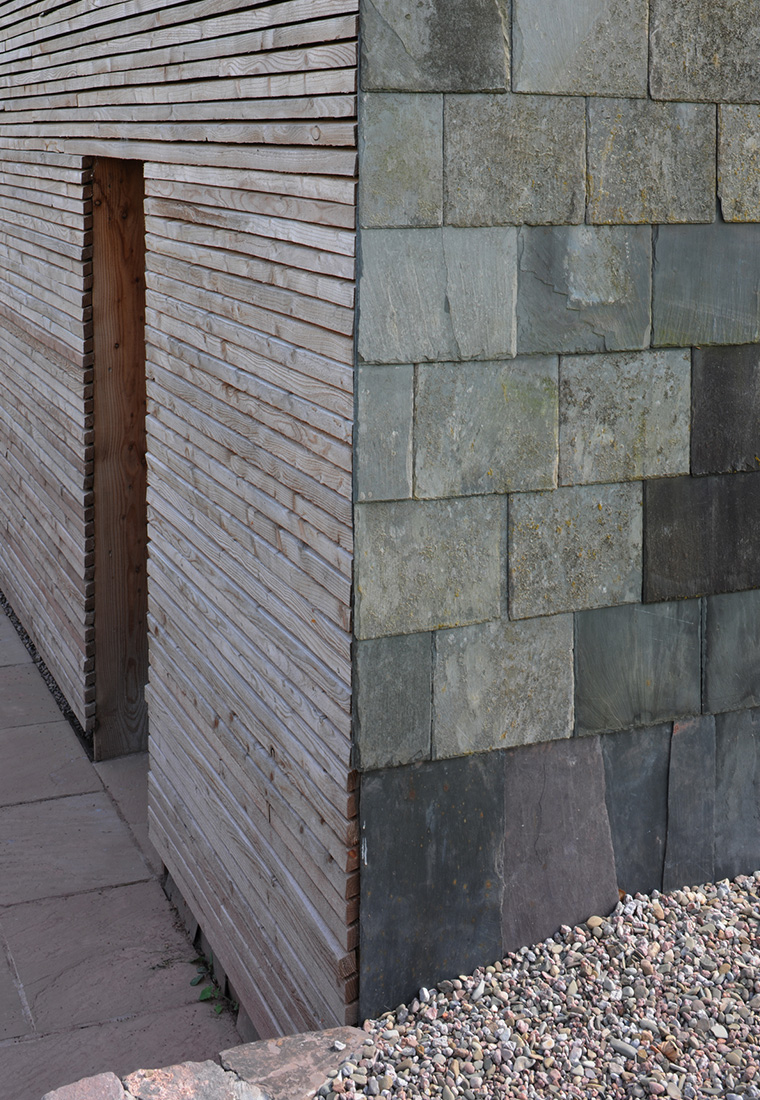

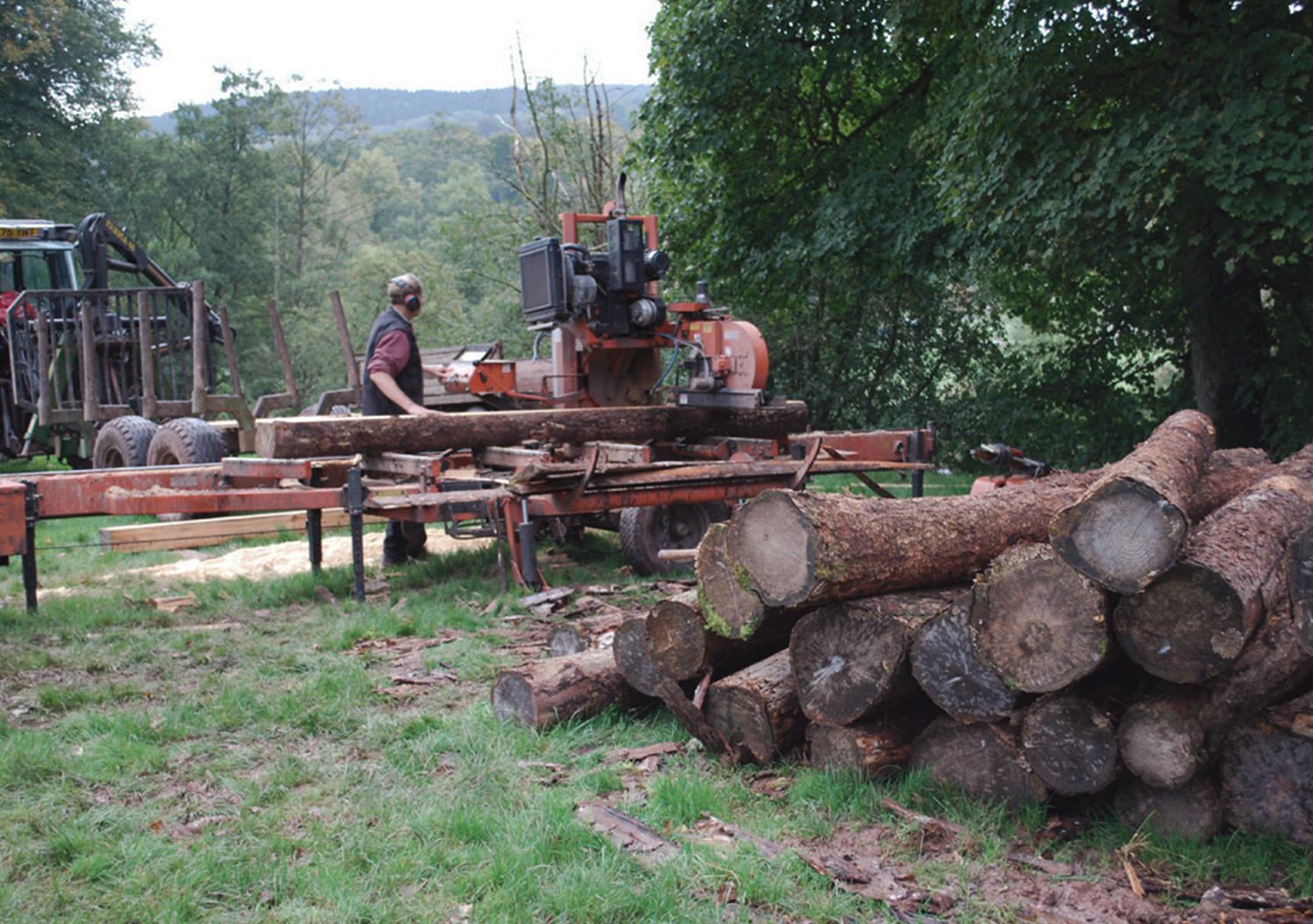

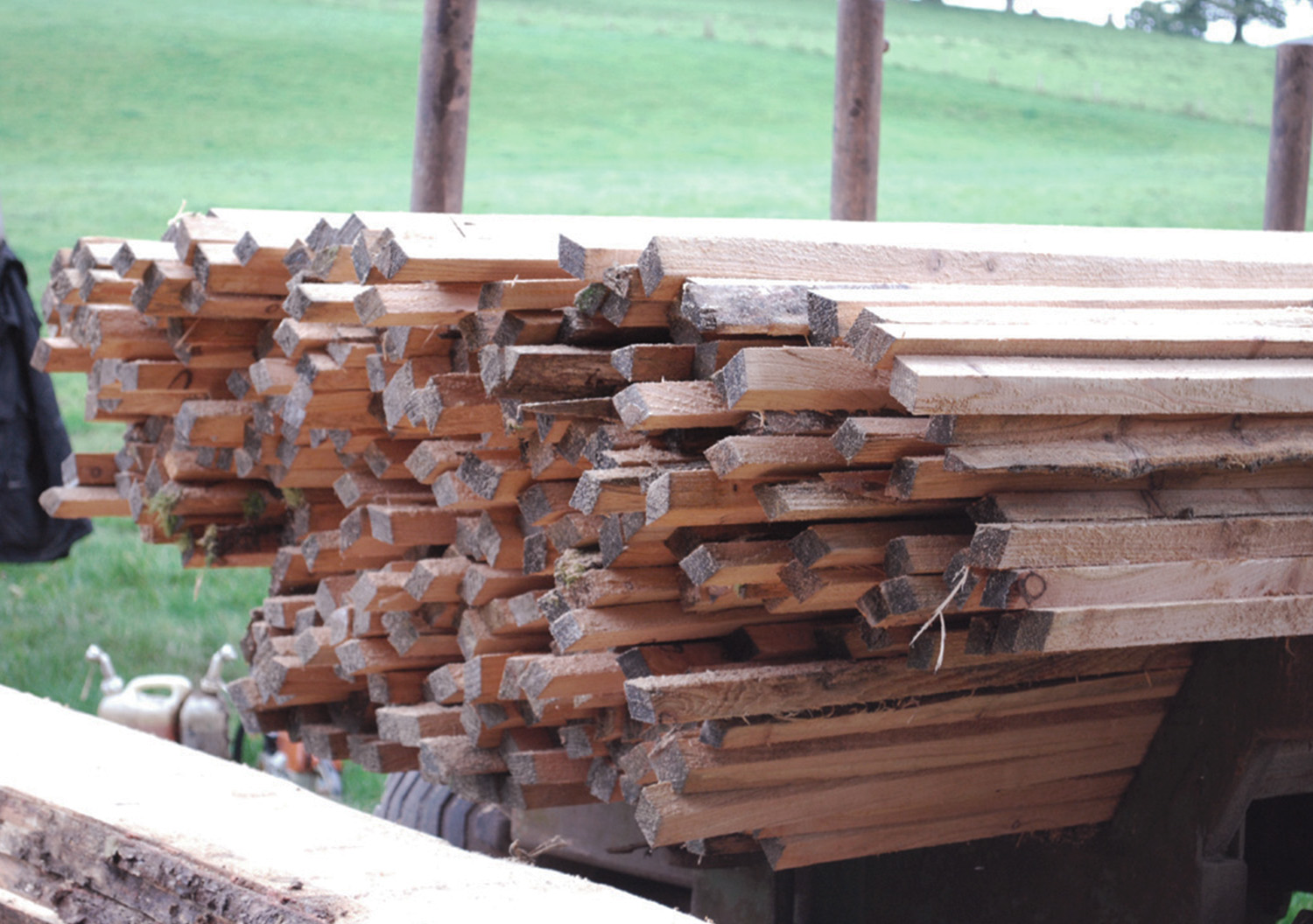

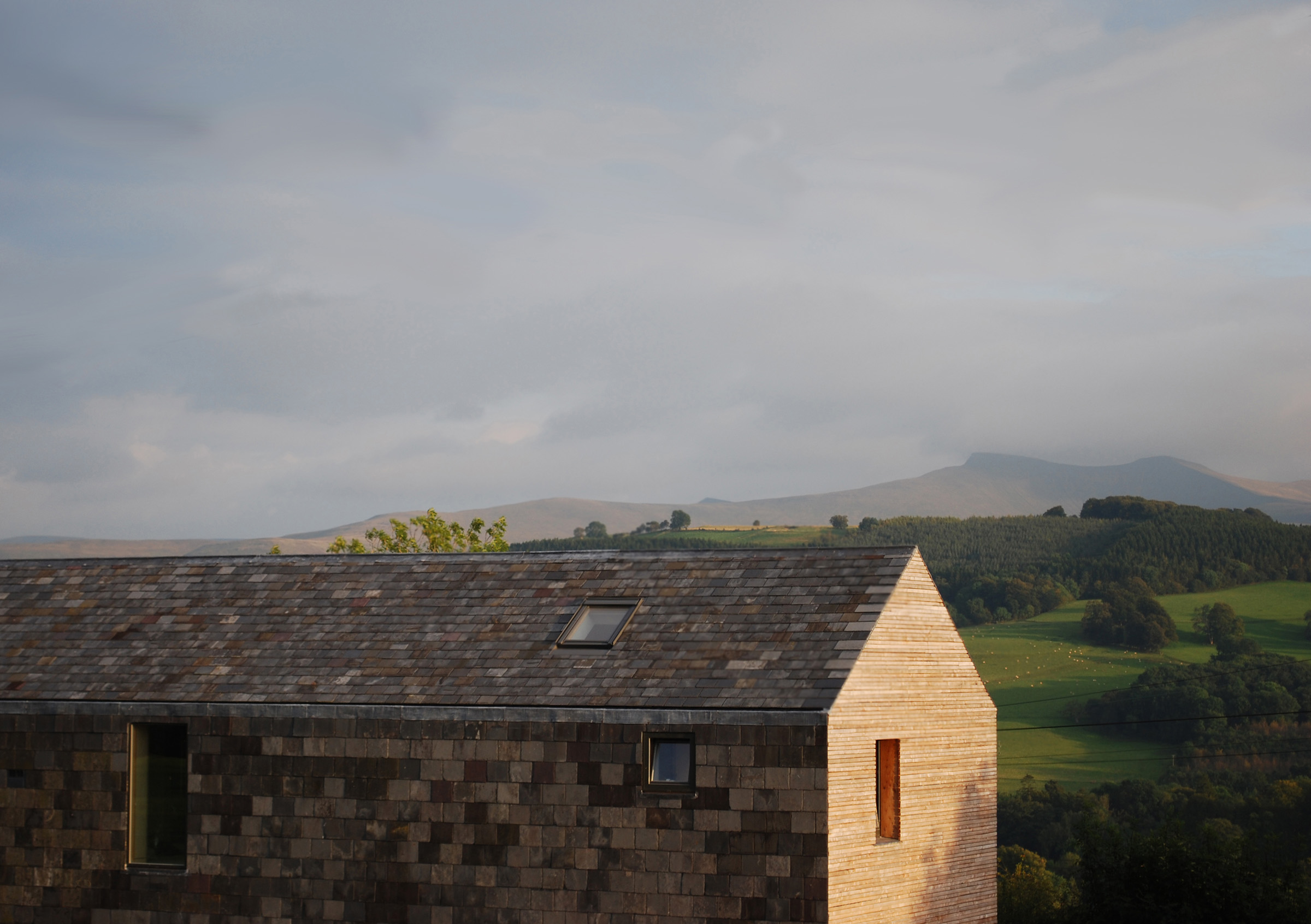

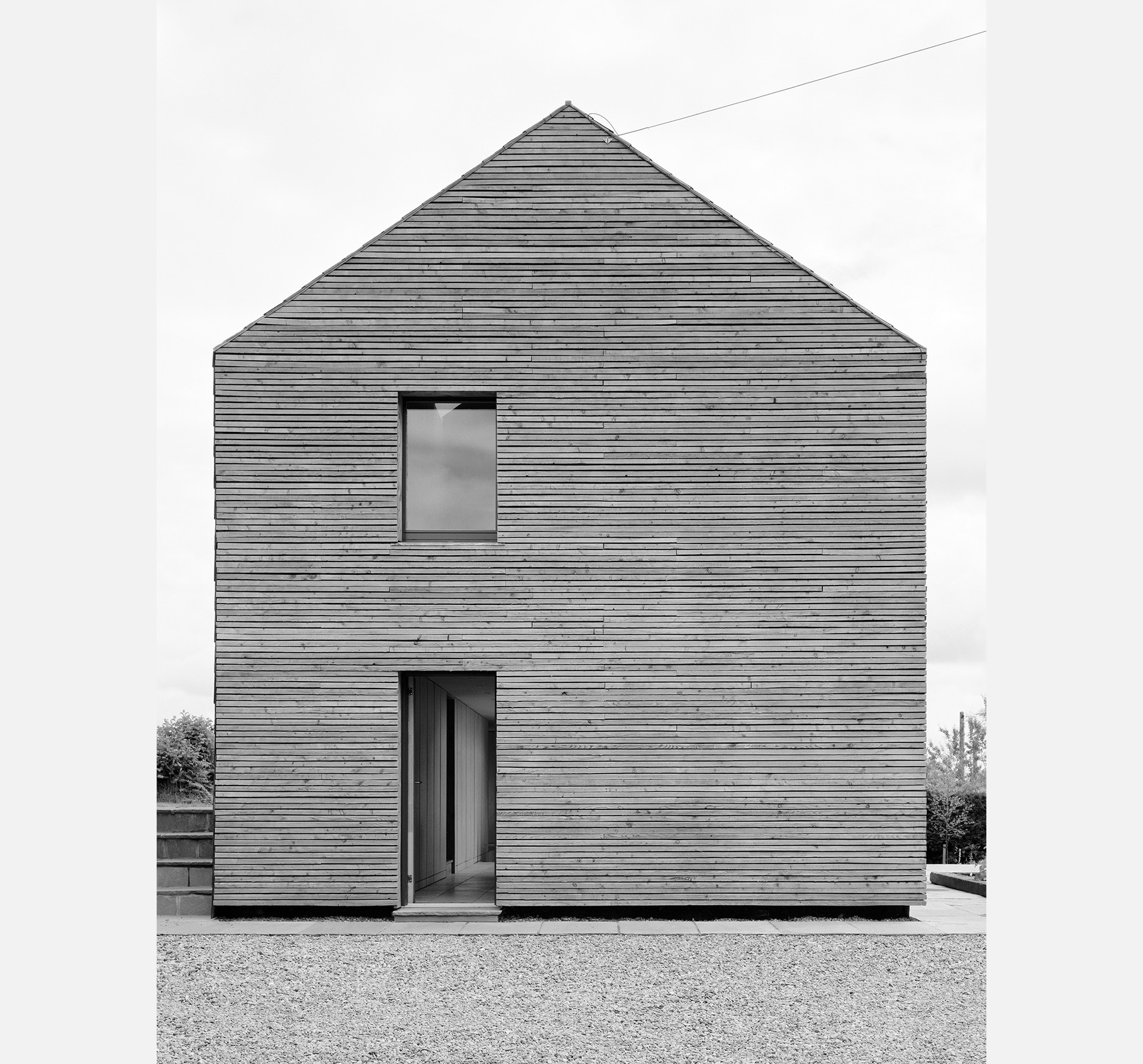

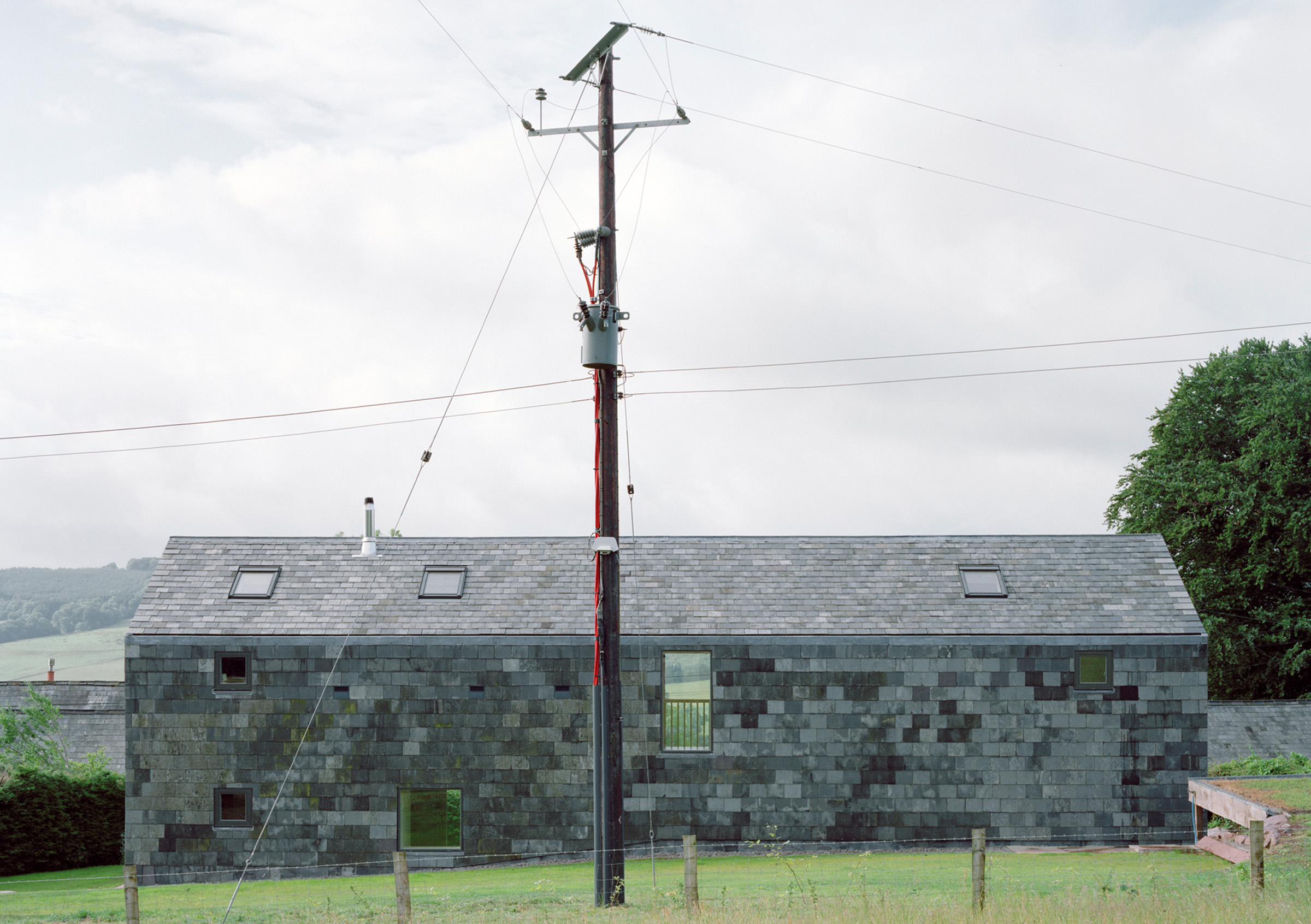

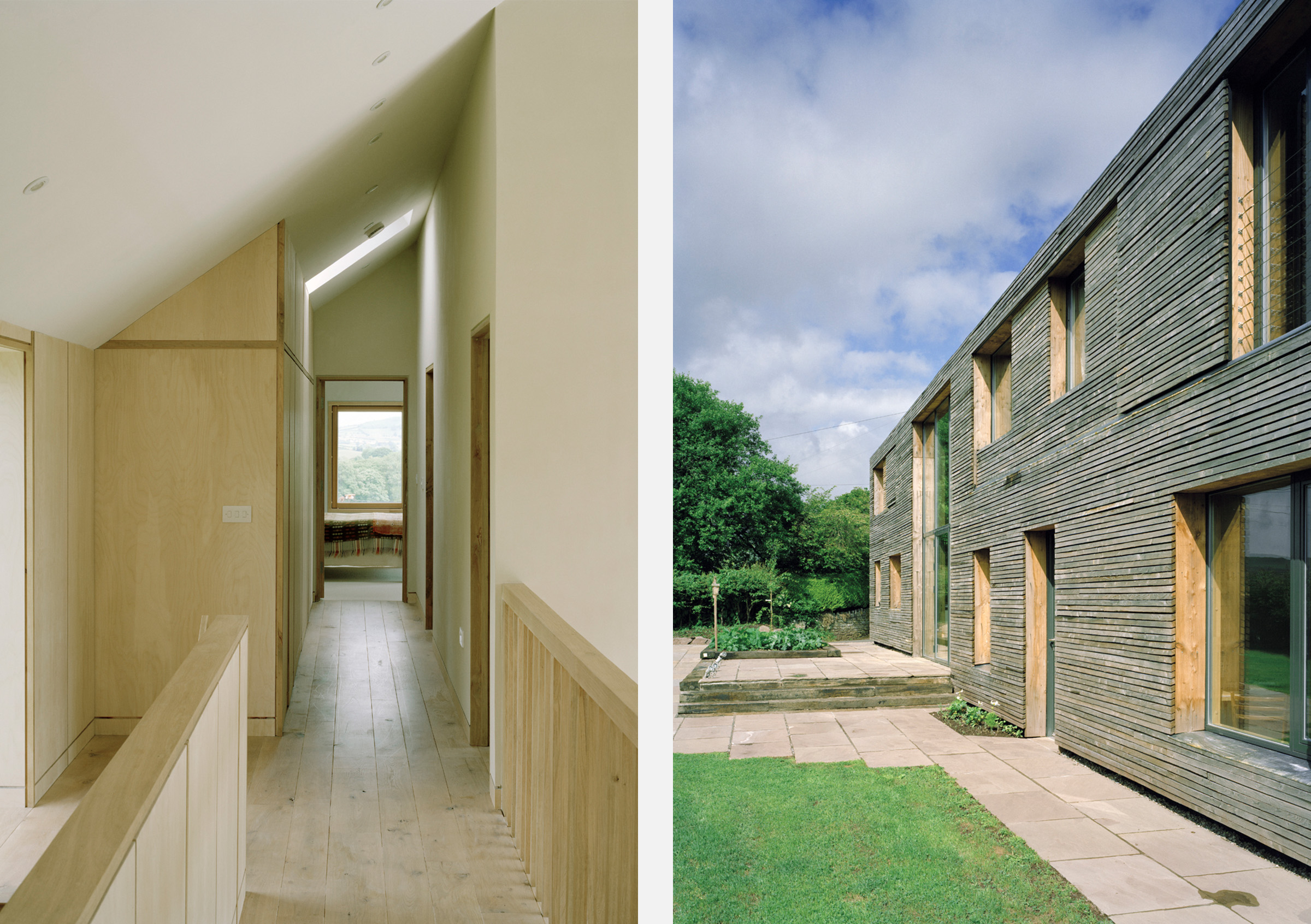

The larch cladding for the ‘solar facades’ was felled from the client’s land 2 miles away and milled on site. Eight larch trees have been planted locally to replace the cladding after twenty-five years, while the removed cladding will be burnt to heat the house. Recycled Welsh slates wrap over the roof and down the exposed north wall.

Project Team

Client: Private Client
Location: Brecon Beacons, Powys, Wales
Sector: Residential
Commissioned: 2007
Status: Completed 2009
Budget: £270,000
GIA: 180sqm

Selected Awards

2010, Grand Designs Eco-house of the Year, Ty Pren, Finalist
